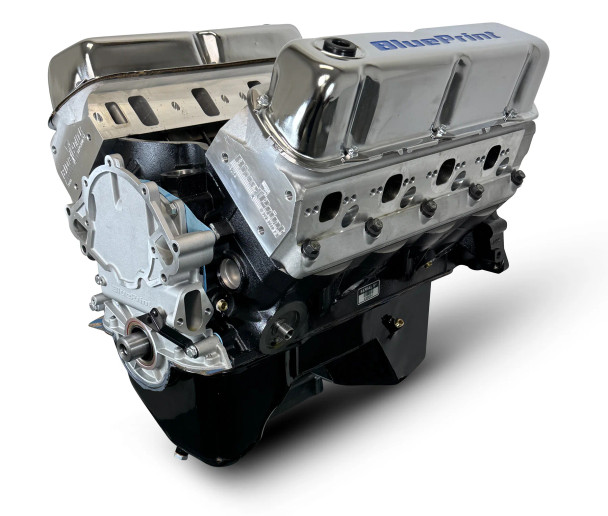

Blue Print Engines 408 Windsor Longblock 450 HP Crate Engine

From Blue Print Engines comes the 408W Longblock Crate Engine for your swapped project or replacement for front sumped late model Ford. Setup with a new 4 bolt main engine block that is stronger than the factory 2 bolt main block. Forged rods and pistons, 10:1 compression and a mild street friendly camshaft complete this package. This engine is an ideal candidate for some performance upgrades or can be left alone for a street cruiser. This engine is setup for a front sump oiling system which came in some early model Ford vehicles, however for Fox Body swaps or other late model Fords you can easily swap to a rear sump oiling system, see kit part number below.

Shipping is for the lower 48 continental United States and is truck freight. If you need shipped elsewhere please contact us for a shipping quote.

Horsepower & Torque: 450 Horsepower / 470 FT. LBS. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10:1

Camshaft: Hydraulic Roller Cam - .579 Intake / .579 Exhaust Lift and 236 Intake / 248 Exhaust Duration @ .050 - 114° LSA

Pistons: Forged

Crankshaft: Steel Crank - 4.000" Stroke and Forged 6.200" Rods

Block:

• Square and Parallel Decked
• Line Honed Main Bearing Bore
• Cylinders Honed on Computer-Controlled Machine to Within .0002 Straightness and Roundness
• Cylinders are Sonic Tested for Thickness
• 4-Bolt Main
• 4.040" Bore
• 1-Piece Rear Main Seal
• Mech Fuel Pump Provision: yes

Rotating Assembly:

• New Steel Crankshaft
• 4.000" Stroke
• Forged I-Beam 6.200" Connecting Rods
• Forged Pistons
• 28 Oz. Externally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads -HP9009
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 65cc Exhaust Runners

Cam Specs:

• Hydraulic Roller Cam
• .579 Intake / .579 Exhaust Lift
• 236 Intake / 248 Exhaust Duration
• @.050-114 Degree Lobe Separation

Ignition Timing:

• 34 Degrees Total at 3500 RPM

Also Includes:

• Front Sump Oil Pan
• Dipstick
• Timing Cover
• Valve Covers

Notes:

• Not for use in pollution-controlled vehicles.
• *A bronze distributor gear is NOT recommended on this engine
• For fox body or sn95 swaps use the swap oil pan M-6675-A58
• Fox body swaps will need a reverse rotation water pump and factory style timing pointer
