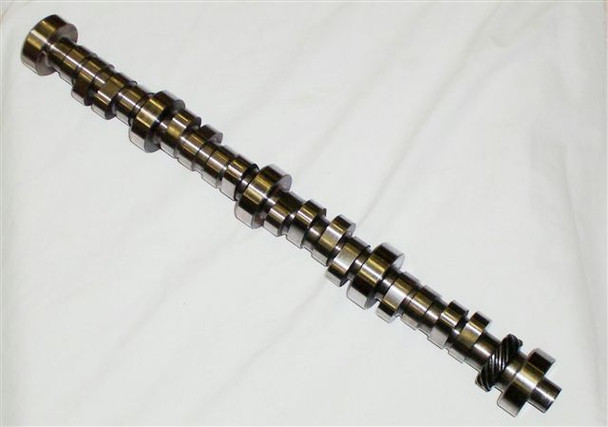

B-31 Camshaft 2400-6200 Range

B-31 Camshaft works with stock OEM pistons with 1.6 roller rockers.  RPM range 2400-6200. Hydraulic Roller. Steel Core. Use steel camshaft gear.

N2O or S/C 8-15 lb 302 c.i.d. Best performer for 1.6 R.R., stock pistons and 6200 rpm. Great with TFS or Edelbrock heads. Minimum 30lb injectors and 80mm mass air. Recommend 3.55 or 3.73 gears. Good drivability down to 1900 rpm, mild idle, rpm range 2400-6200, works good with 89-95 EEC, needs 2600-3000 converter. Great N.A. cam for 94-95 Mustang with great drivability.

Note* Will NOT fit stock pistons on a 1986 5.0L without valve reliefs in the pistons

Fits the following cylinder heads with stock OEM pistons from 87-95 5.0L

AFR-1399 Air Flow Research Renegade 165cc with 1.9 valves

AFR-1341 Air Flow Reasearch Enforcer 185cc with 1.9 valves

TFS-51410002-M61 TrickFlow 170cc Twisted Wedge with 2.02 valves

TrickFlow 170cc 11R with 2.02 valves

ED-60225 Edelbrock Performer RPM 170cc with 1.9 valves

GT40 Iron with stock size valves

GT40 3 Bar Iron with stock size valves

OEM E7 Iron with stock size valves

 Example of using Anderson B-31 cam
Vortech S-Trim, Anderson Power Pipe, 347 c.i., AFR 185 Heads, Anderson B-31 camshaft, Edelbrock Performer RPM intake,PMS,  Anderson 1 3/4 shorty headers, Bassani X-Pipe and Bassani exhaust

Example of using Anderson B-31 cam
Anderson Ford Motorsport  Stage II S-Trim, Stock short block, TFS Heads,HOLLEY SYSTEMAX intake 42# Injectors,75mm T/B, Pro-M 80MM,,AFM B31 camshaft,1.6Roller Rocker , BBK 1.625"Header,BBK off road ,Flowmaster 3 Chamber Cat Back

Example of using Anderson B-31 cam with stock 94-95 ECC
1995 Mustang GT, TFS T.W. heads,Systemax II intake,75mm T.B.,Pro-M 75mm,30# injectors,Hyfire 6a,B-31 camshaft,1.625" uneq shorty hdrs,x pipe,Magnaflow cat back, street underdrives,3.73,pms, 93 oct fuel.
