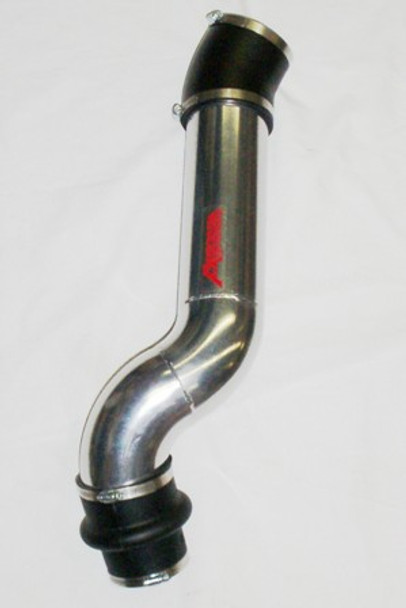

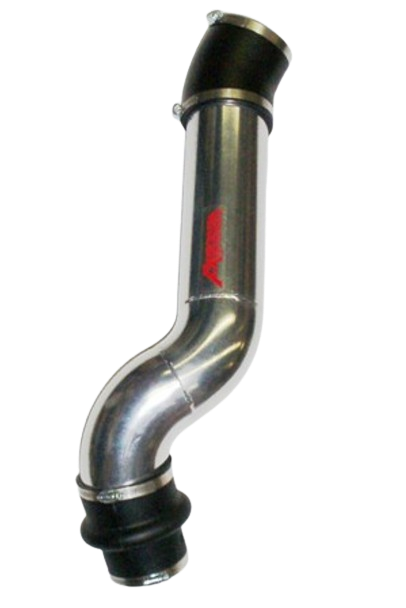

Anderson Natural Aspirated 4" Power Pipe®. Fits 94-95 Mustang 5.0L (AF-0119C)

Anderson Natural Aspirated 4" Power Pipe®  for 94-95 Mustang 5.0 w/ ProM 80mm/92mm, SCT BA2600/3000 and PMAS 80/90mm mass air meters

Flows 1147 cfm at 20,4" of water. Tested on our Super Flow 1200 flow bench

Mandrel bent 4"" pipe that puts the mass air and air cleaner in the fenderwell for a cooler intake charge for added H.P.
Does not include Mass Air Meter or Air Cleaner. We highly recommend a 75mm throttle body for the best results.

In the box:

Power Pipe assembly

4x4 MAF coupler

4x4 throttle body coupler

3.5" insert (x2)

3" insert

4x3.5 throttle body reducer coupler

*Note - coupler designed to be loose on the throttle body on purpose for venturi style air effect when rubber elbow snugged down, also you must tighten down the clamp enough to seal and avoid air leaks

It will be required to relocate the air temperature sensor into the new coupler by drilling a small hole into the rubber and pushing the sensor into the coupler.

*This power pipe was developed for maximum airflow utilizing the unique 94-95 Mustang throttle inlet and considered a "race" component. No provisions for factory pcv or temp sensors were added but can be retro-fitted by the installer.

Instructions

Run 004 5.0, Vortech intake,  80mm  Pro-M, 70mm T.B., TFS heads AFM B-3 cam,  BBK headers, x-pipe,flowmasters,

Run 008 Only change Af-0119C Power Pipe®
